CT60 MAXPOWER bow thruster 24 V Ø185 mm

Original price was: 1 735,00 €.Current price is: 1 388,00 €.

MAX Power bow thrusters

Made to order / Backorder, delivery estimate 2-5 days

SKU: 42531 Category:

Description

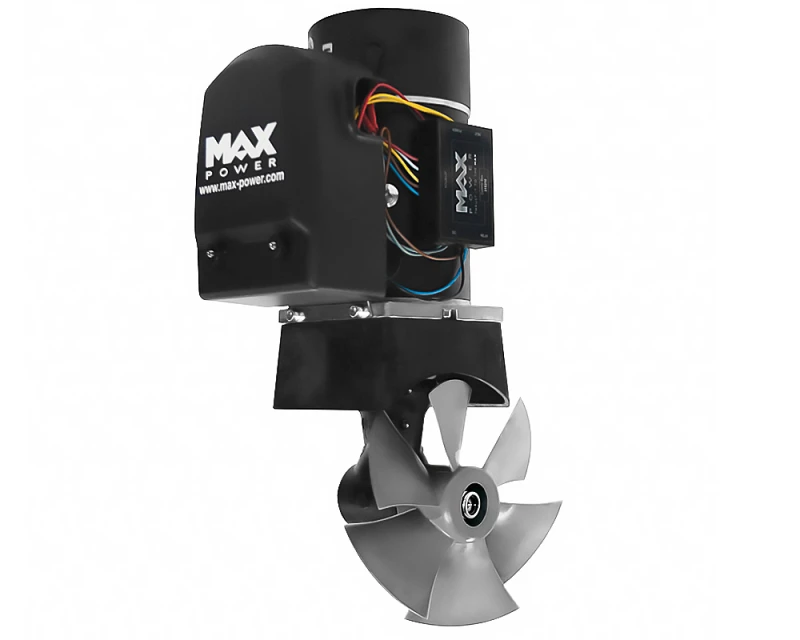

MaxPower CT60 bow thruster for sailboats and powerboats.


The MaxPower CT60, an electrically powered bow thruster for 24 V systems, is a powerful and reliable bow thruster for controlled boat handling in harbours and on shore, for example in challenging crosswind conditions.

The inside diameter of the propeller tunnel (to be purchased separately) is Ø 180 mm. In addition to the bow propeller, a propeller tunnel, control panel + wiring harness, fuse and fuse box are required.


The MaxProp CT60 provides precise, quiet and immediate steering power with 63 kgf thrust (calculated at -10% voltage drop) for all boating situations where reliable additional manoeuvrability is required.

The CT60 bow thruster fits both sailboats and powerboats up to nearly 12 metres in length.
Durable construction, quality components and optimal thrust make the MaxPower CT60 a safe choice for the boater who wants improved safety and controllability without compromise.

Max Power bow thrusters are used by many well-known boat builders and are also ideal for retrofit applications to upgrade the manoeuvrability of the boat to a new level.

The MaxPower CT60 is an excellent choice when looking for a powerful bow thruster with a slightly larger propeller size. With the CT60 bow propeller, you can improve boat control and manoeuvrability, as well as safe boat handling in harbours and windy conditions.

The composite propeller foot of the CT60 gearbox reduces the risk of corrosion and maintenance as a separate protective anode is not required.

MaxPower's CT60 bow propeller is designed to reduce the risk of corrosion and maintenance.

Engine power 4.4 kW/ 5.9 hp.
Voltage (V) 24 V
Maximum thrust of bow thruster (N/ Kgf) 637/ 65
Dimension A 210 mm
Dimension B 140 mm
Dimension C 275 mm
Mitta D 185 mm
Mitta E 6 - 7 mm
Fuse size 175 A
Tunnel diameter Ø (mm) 185
Boat length 7.8 - 11 m (powerboats, motor sailers and sailing boats) /8.2 - 11.8 m (light boats with small wind area)

Attachments

CT60 Product Data Sheet / Product brochure [ENG]
