-20%

CT100 MAXPOWER bow thruster 12V series Ø185 mm dual

Original price was: 3 185,00 €.Current price is: 2 548,00 €.

MAX Power bow thrusters

In stock, available for immediate delivery.

SKU: 636265 Category:

Description

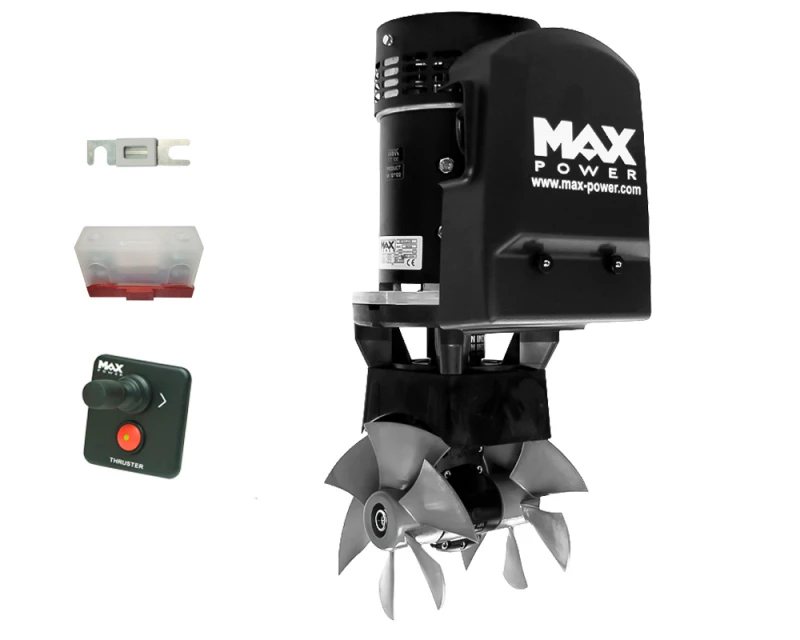

MaxPower CT100 propeller kit for sailboats and powerboats.

The kit includes:

Note! Bow thruster tunnel and wiring harness and connectors sold separately.


The electric-powered MaxPower CT100 is a powerful and reliable twin-propeller bow thruster for controlled boat handling in harbours and on shore, for example in challenging crosswind conditions. It is suitable for sailing boats up to 15.5 m and heavy boats with a large wind area and powerboats up to about 12 m in length.


The inner diameter of the propeller tunnel is Ø 185 mm. The Max Power CT100 provides efficient, precise, quiet and instant steering power with 96 kgf thrust (-10% voltage drop included) for all boating situations where reliable additional manoeuvrability is required.

Durable construction, quality components and optimum thrust make the MaxPower CT100 a safe choice for the boater who wants to improve safety and controllability without compromise.

The MaxPower CT100 bow thruster is used by many well-known boat builders, and is also ideal for retrofit applications when you want to upgrade your boat's maneuverability to a new level.

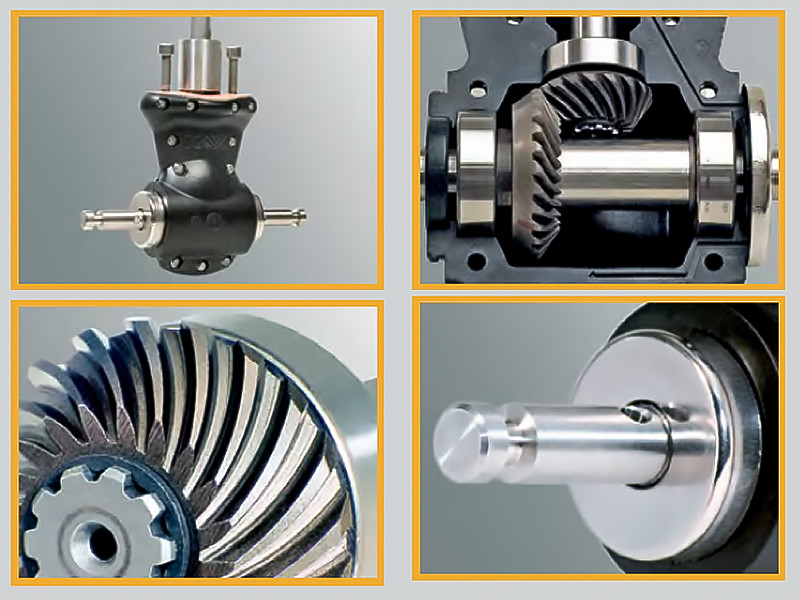

The composite propeller foot of the CT100 gearbox reduces the risk of corrosion and maintenance because a separate protective anode is not required.


Engine power 7.1 kW/ 9.5 hp.
Voltage (V) 12 V
Maximum thrust of bow thruster (N/ Kgf) 96

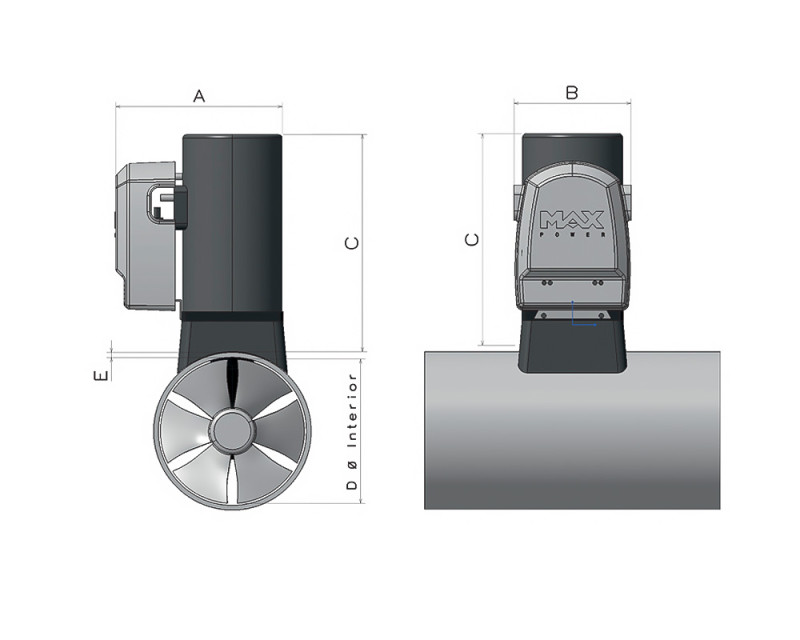

Dimension A 250
Dimension B 200
Dimension C 356
Mitta D 185
Mitta E 6 - 7
Fuse size 400 A
Tunnel diameter Ø (mm) 185
Boat length 9.7 - 12.0 m (heavy boats with high wind area and motor sailers), 11.8 - 15.5 m (sailing boats and light boats)

Attachments

Product_Data Sheet_CT100 CT100 brochure
